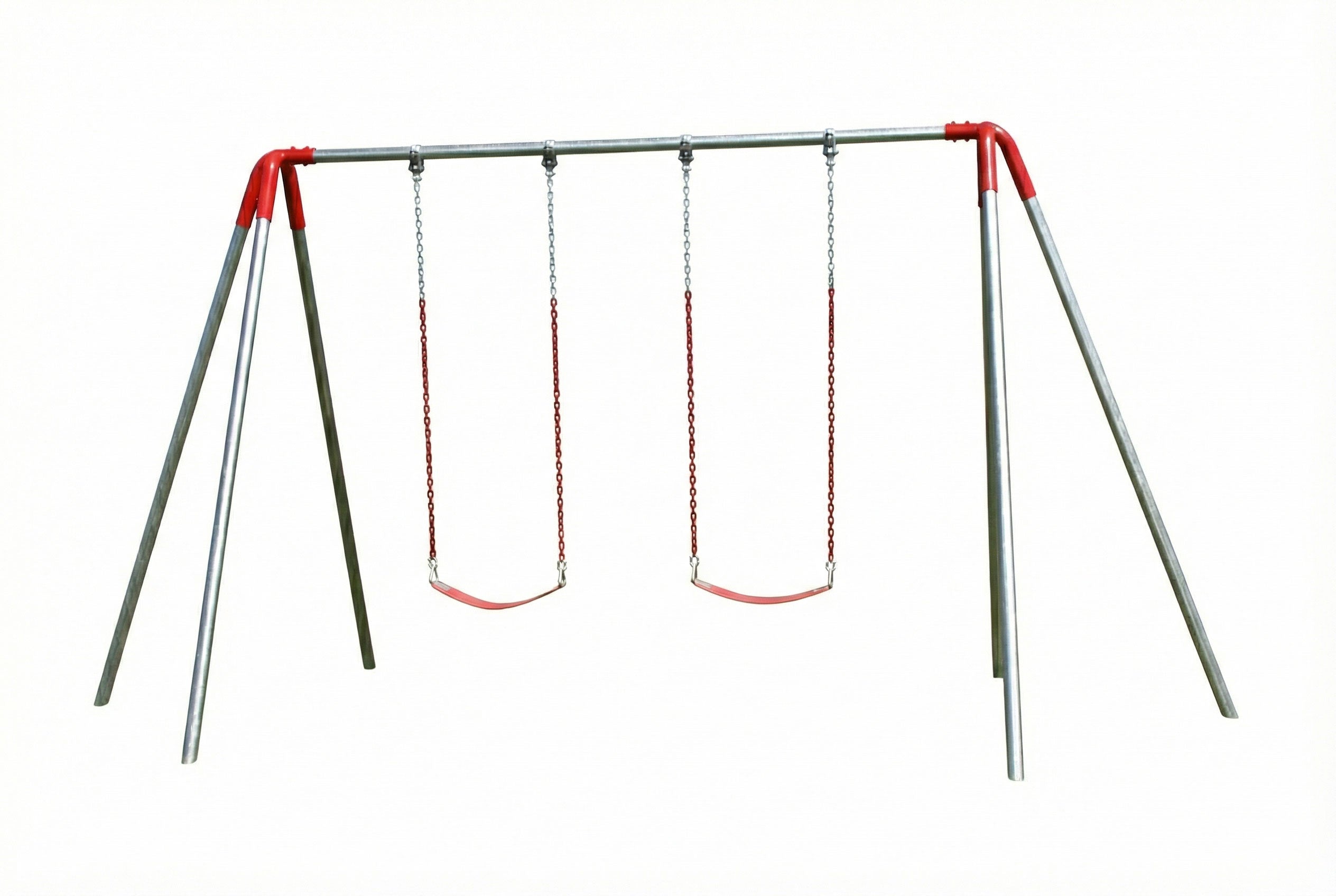

Heavy Duty 8 Foot High Swing Set
- Dimensions: 128 × 22 × 23 in
- Weight: 396

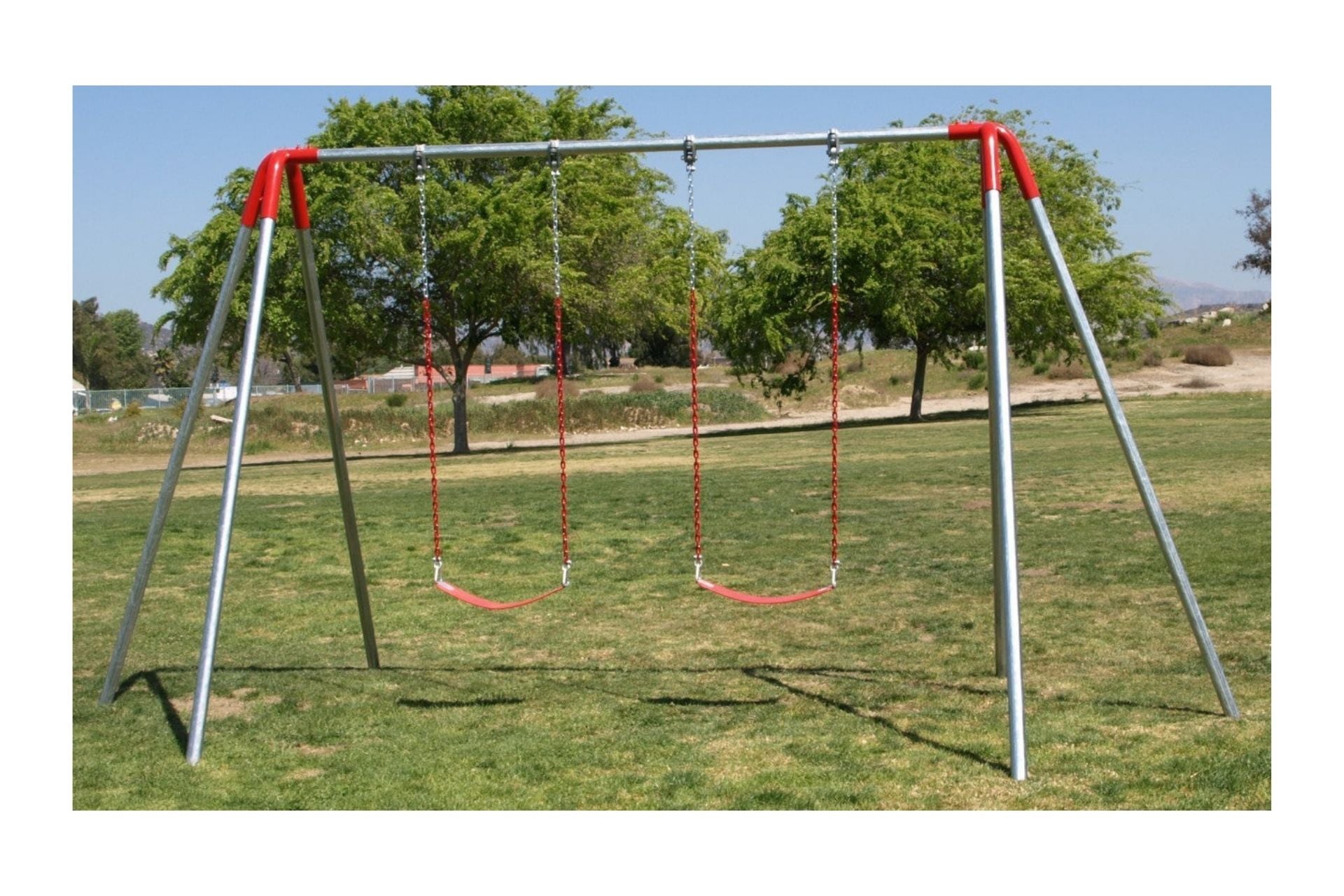

The Front (A) and Back (B) legs are 92" apart above ground and 110" below ground. Lengthwise, the two front legs (A) to (A) are 126" apart. The two middle legs (AA), which are the legs furthest apart, are 198" apart. The front leg (A) to the middle leg (AA) is 58" apart above ground. The height of the set is 8'.
Two Bay- Weight: 549

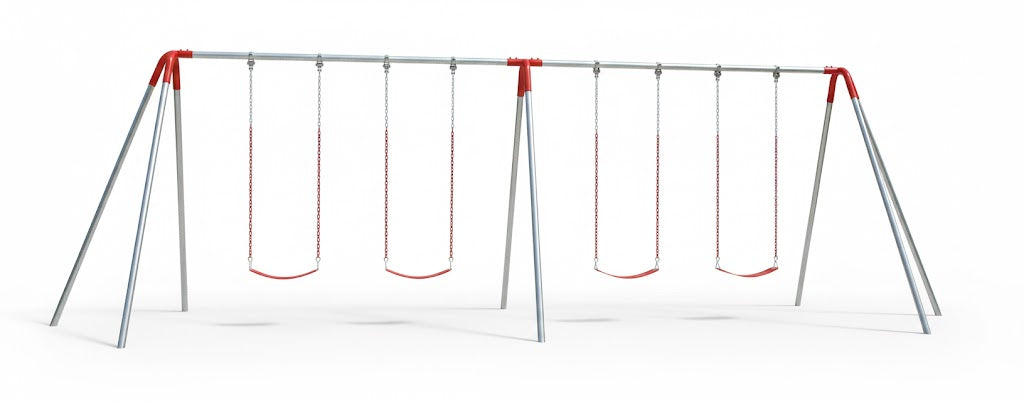

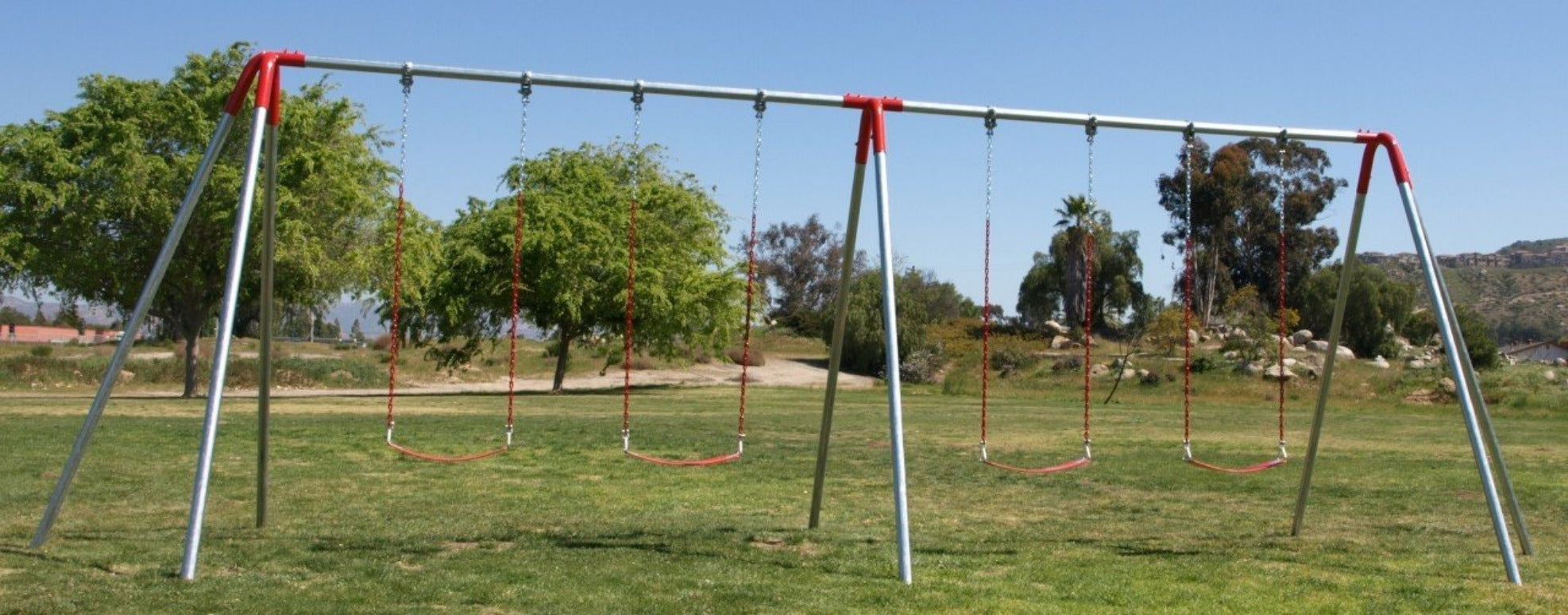

The Front (A) and Back (B) legs are 92" apart above ground and 110" below ground. Lengthwise, the two front legs (A) to (A) are 247" apart. The two middle legs (AA), which are the legs furthest apart, are 321.5" apart. The front leg (A) to the middle leg (AA) is 58" apart above ground. The front leg (A) to the middle front leg (C) is 126" apart. The height of the set is 8'.
Three Bay- Weight: 684

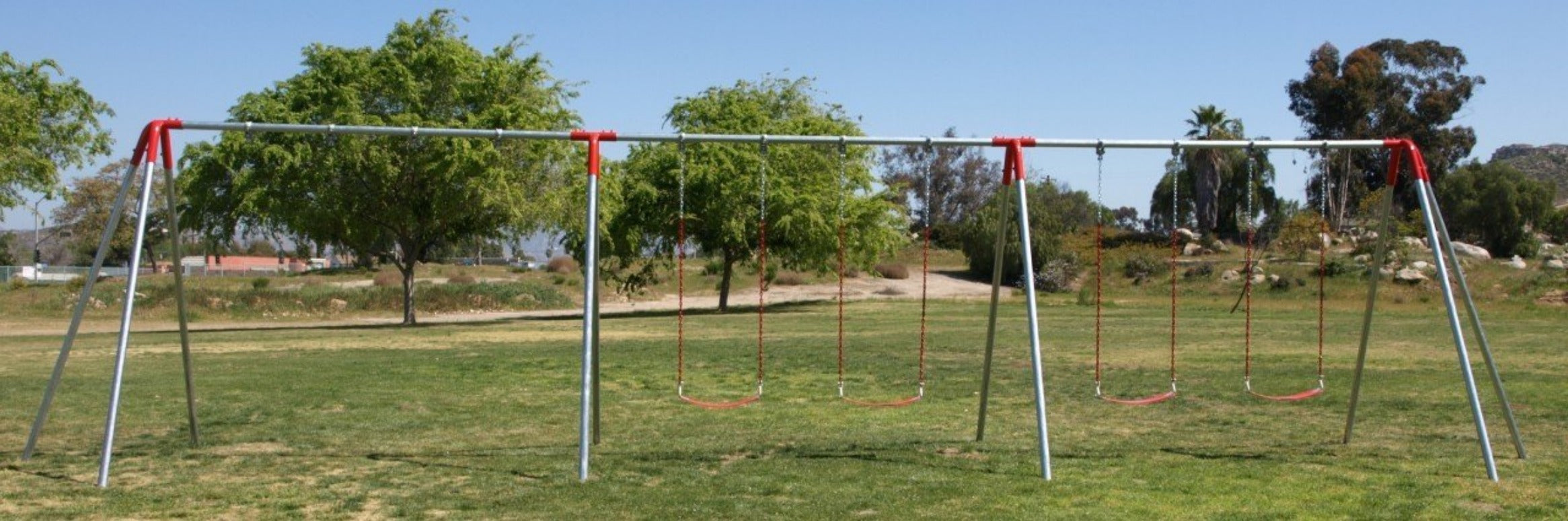

The Front (A) and Back (B) legs are 92" apart above ground and 110" below ground. Lengthwise, the two front legs (A) to (A) are 376" apart. The two middle legs (AA), which are the legs furthest apart, are 443" apart. The front leg (A) to the middle leg (AA) is 58" apart above ground. The front leg (A) to the middle front leg (C) is 126" apart. The height of the set is 8'
Ladder, wrench, Ratchet socket wrench, Tape measure, H175 supplied Allen wrench for shackles, and 6mm Allen wrench for set screws, Stakes for marking holes, Shovel, Bricks, Gravel, Wheelbarrow for mixing concrete, Water, Concrete, Trowel, Level, Warning signs. Protective surfacing according to ASTM F1292 for a fall height of 10'.
This seat is for children 4-12 years old only. Not for Adults. Adults should supervise children at all times. Do not allow children to stand or kneel on seat or use unsafely. Do not allow swing to be used if damaged. Do not use if wet. Instruct children not to wrap chains around top beam or twist chains. Tell children to watch for children and adults standing, walking or running close to moving swings and to stop swinging to avoid hitting them and causing injury. Tell children to hold chains tightly in each hand while swinging. Tell children not to get off swing until it has stopped completely.
Installation information can be found here
