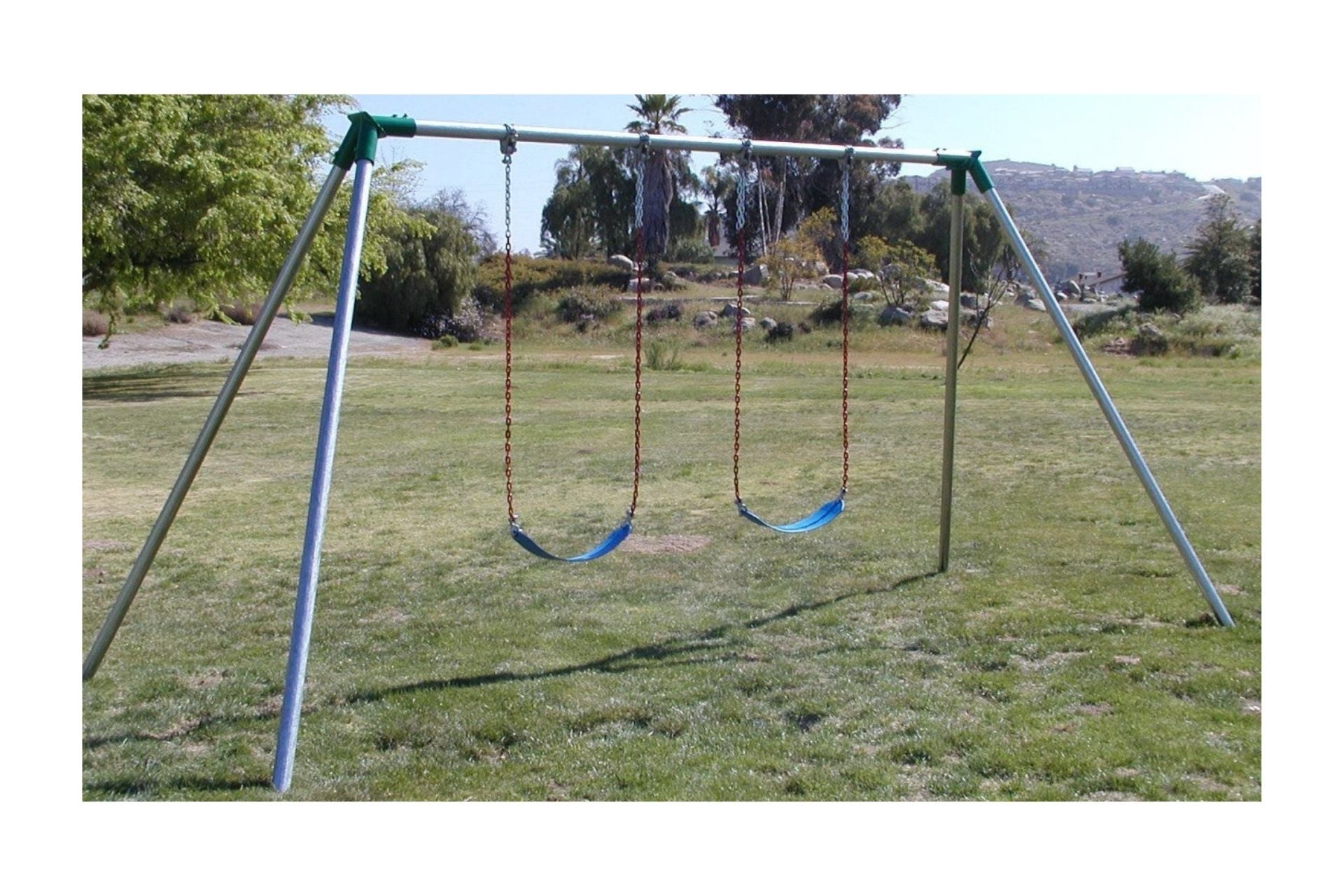

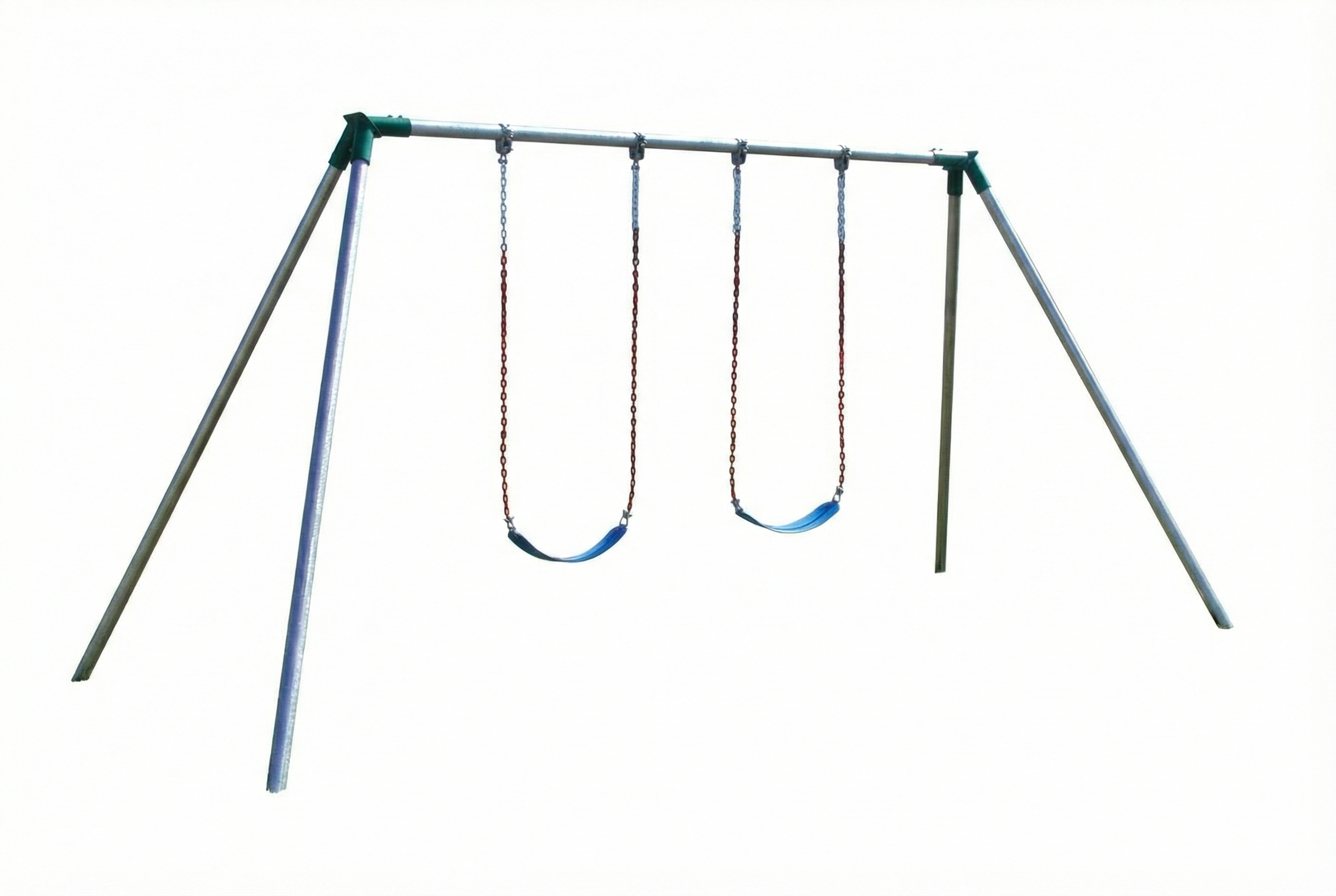

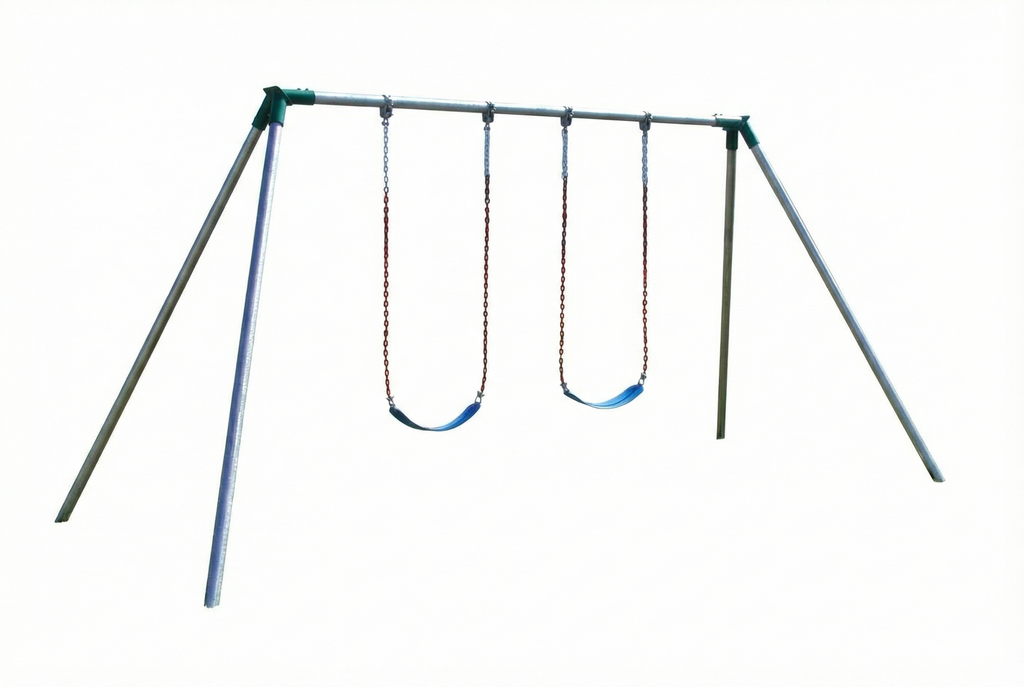

Standard 10 Foot High Swing Set
- Dimensions: 156 × 22 × 23 in
- Weight: 289

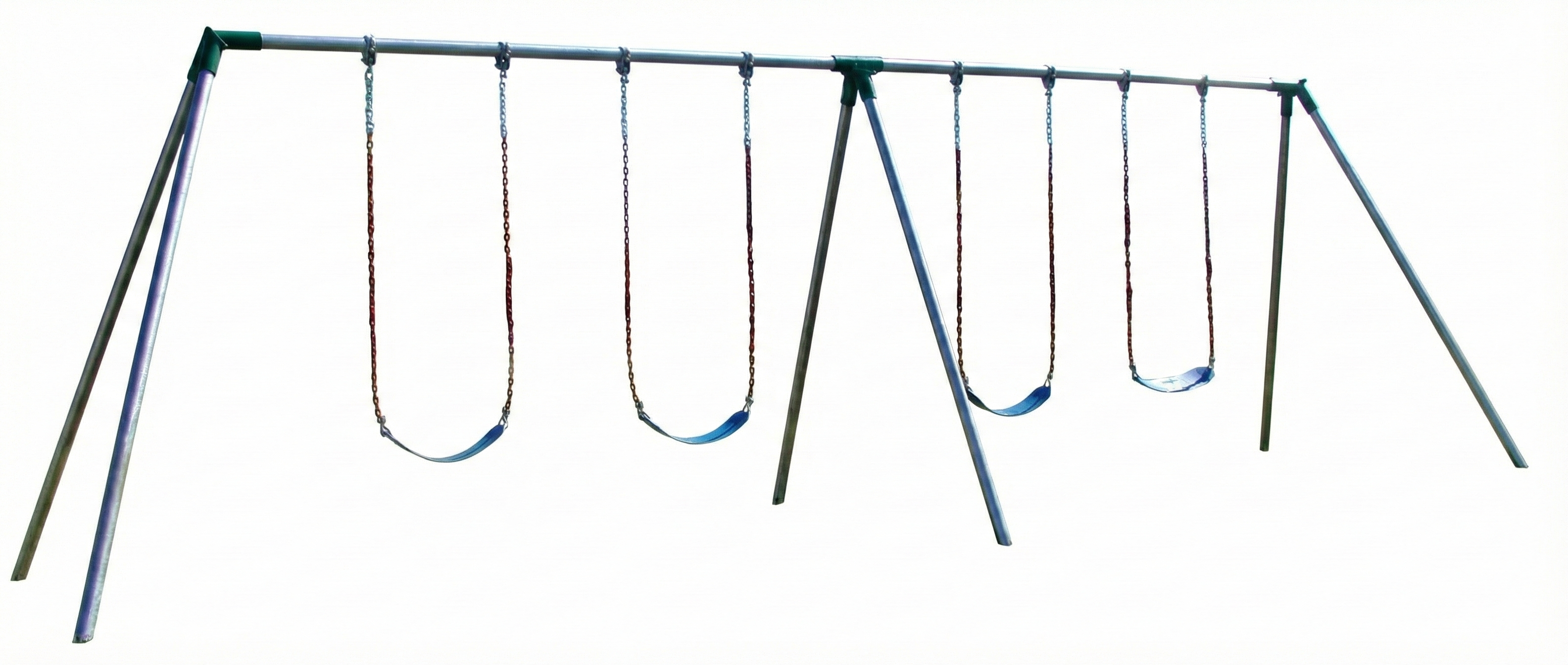

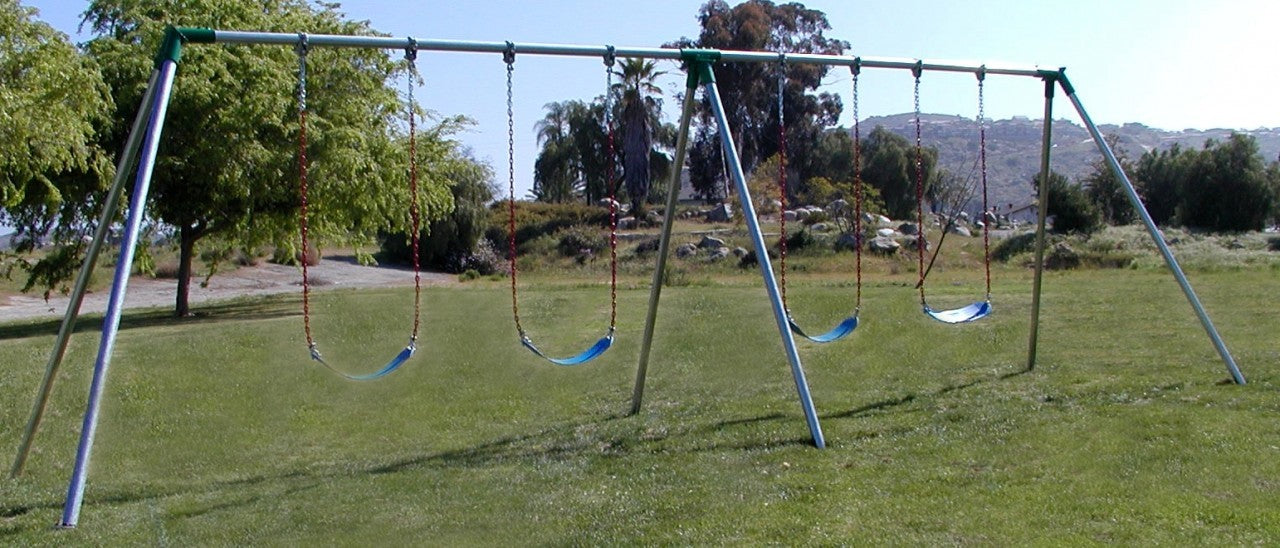

The legs are 220" apart lengthwise at ground level. The legs are 115" wide at ground level. Below ground, the legs are 243" lengthwise and the width below ground is 140". Height is 10'Two Bay
- Weight: 517
The end frame legs are 331" apart lengthwise at ground level. The end frame legs are 115" wide at ground level. Below ground, the end frame legs are 347" lengthwise and the width below ground is 140". The distances from the middle leg to the end leg is 165" above ground. The width of the two middle legs is 104" above ground and 124" below ground. Height is 10'
Ladder, wrench, Ratchet socket wrench, Tape measure, H175 supplied Allen wrench for shackles, and 6mm Allen wrench for set screws. Stakes for marking holes. Shovel, Bricks, Gravel, Wheelbarrow for mixing concrete, Water, Concrete, Trowel, Level, Warning signs. Protective surfacing according to ASTM F1292 for a fall height of 10'.
This seat is for children 4-12 years old only. Not for Adults. Adults should supervise children at all times. Do not allow children to stand or kneel on seat or use unsafely. Do not allow swing to be used if damaged. Do not use if wet. Instruct children not to wrap chains around top beam or twist chains. Tell children to watch for children and adults standing, walking or running close to moving swings and to stop swinging to avoid hitting them and causing injury. Tell children to hold chains tightly in each hand while swinging. Tell children not to get off swing until it has stopped completely.
Installation information can be found here
