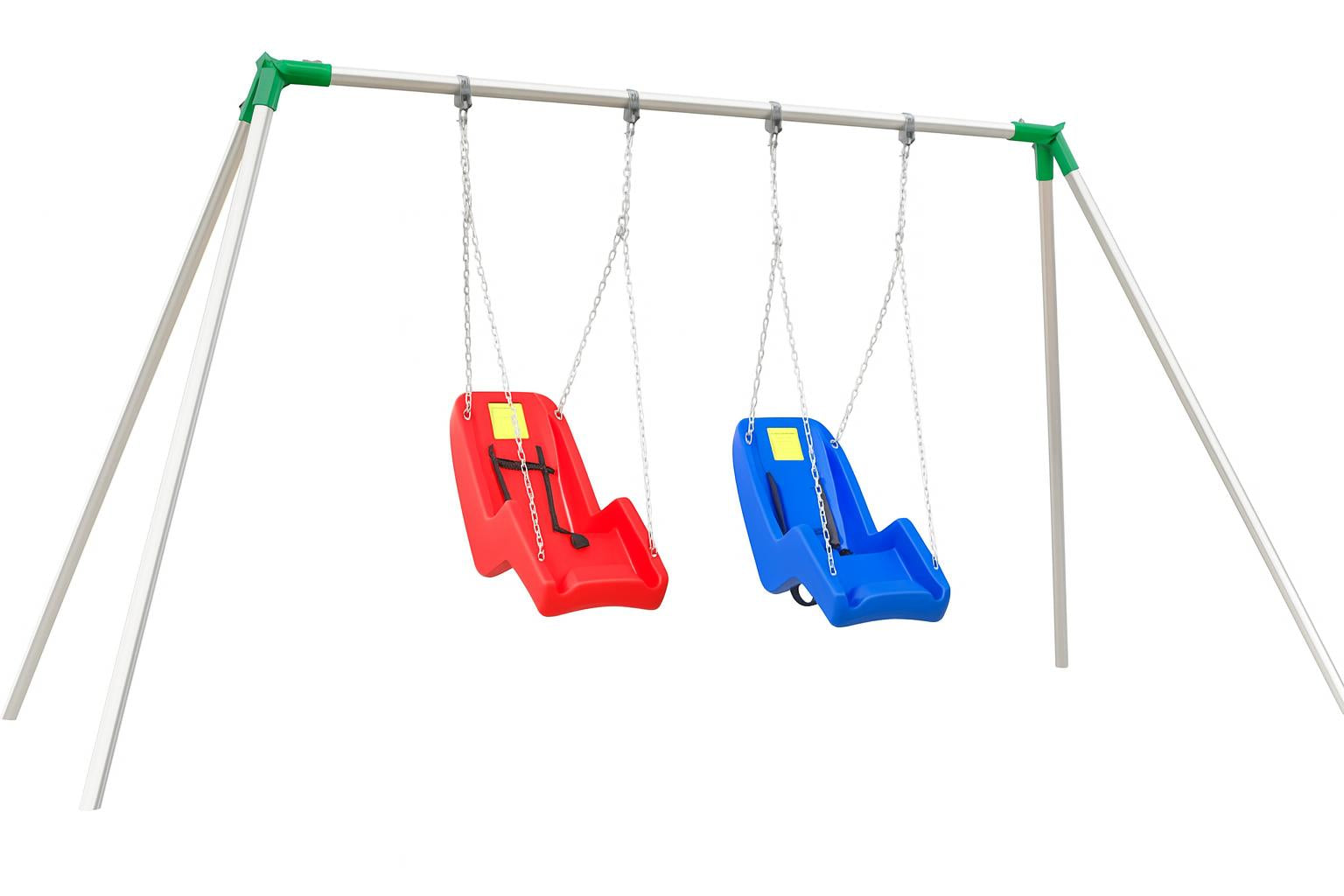

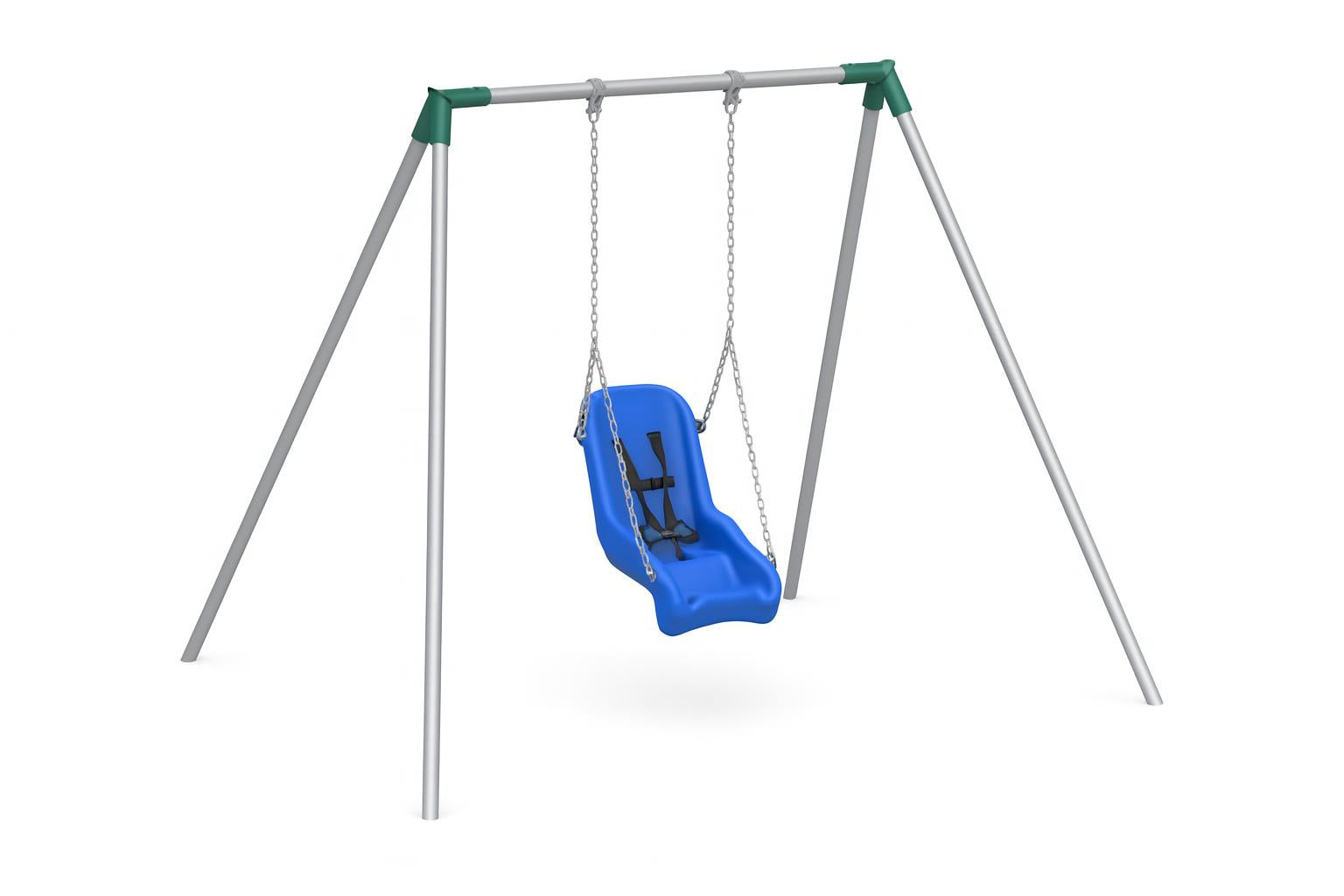

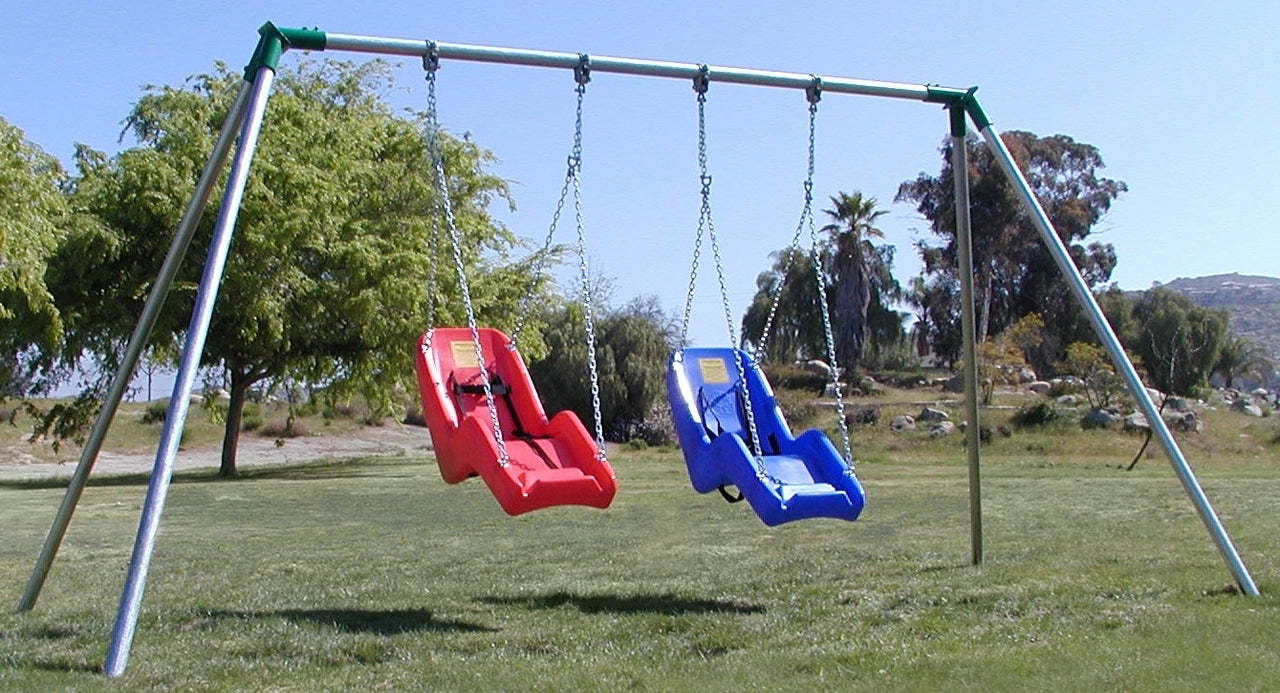

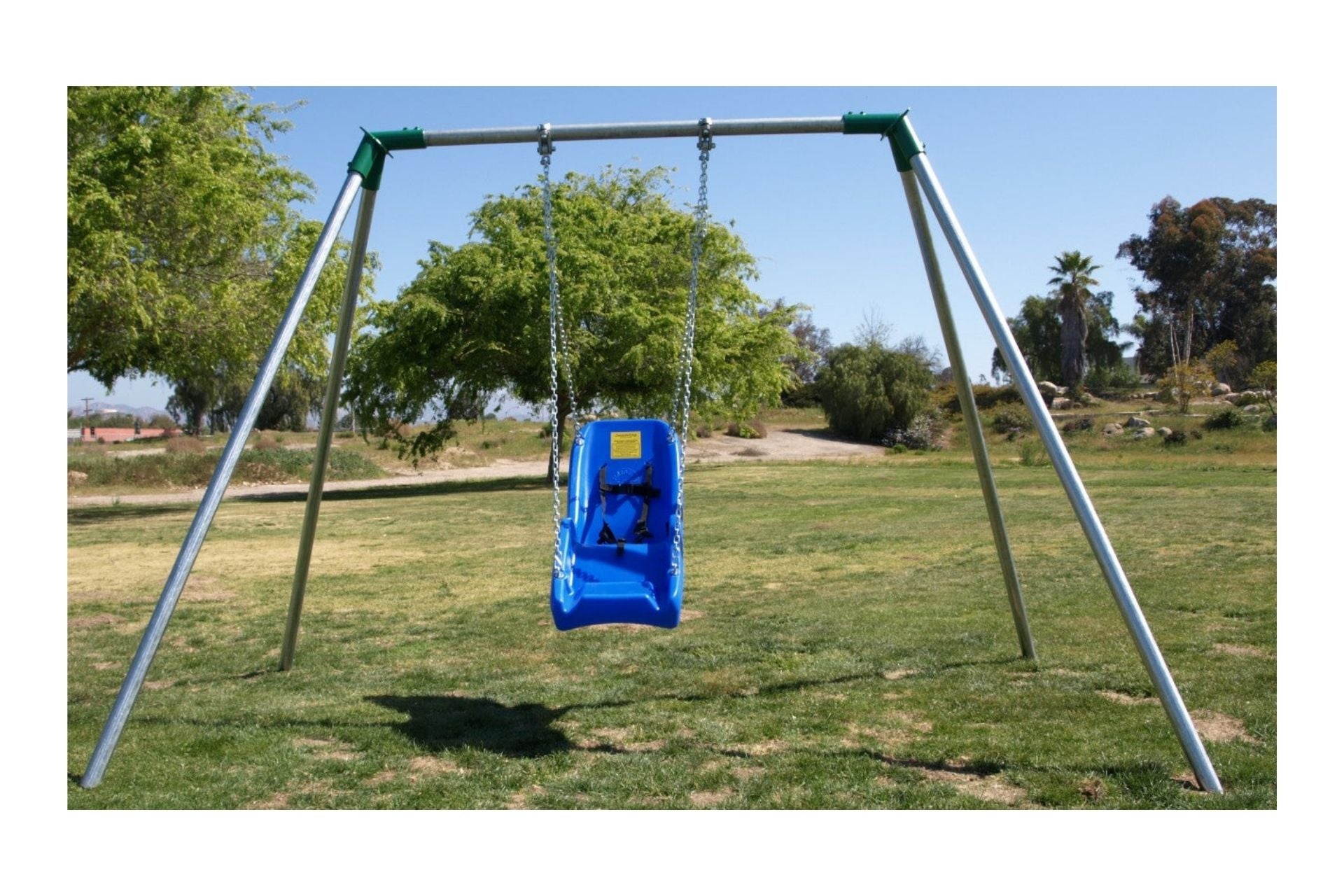

Standard 8 Foot High ADA Swing Set

JensenSKU: S81Ac Lead Time: 5 to 10 Days

Price:
Sale Price$1,582.50

Shipping calculated at checkout

Age Range 4 to 12 years old
Equipment Weight
  • One Bay/One Swing Commercial/Residential: 297 lbs
  • One Bay/One Swing Residential Only: 297 lbs
  • One Bay/Two Swings Commercial and Residential: 339 lbs
  • One Bay/Two Swings Residential Only: 339 lbs
Fall Height 120"
Installed Dimensions One Bay/One Swing Commercial/Residential: 142' wide x 31' long x 23' tall
ASTM Certified

Ladder, wrench, Ratchet socket wrench, Tape measure, H175 supplied Allen wrench for shackles, and 6mm Allen wrench for set screws. Stakes for marking holes. Shovel, Bricks, Gravel, Wheelbarrow for mixing concrete, Water, Concrete, Trowel, Level, Warning signs. Protective surfacing according to ASTM F1292 for a fall height of 10'

Specification Details
  • One Bay/One Swing Commercial/Residential: The legs are 150" apart lengthwise at ground level. The legs are 93" wide at ground level. Below ground, the legs are 165" lengthwise and the width below ground is 115". Height is 8'
  • One Bay/One Swing Residential Only: The legs are 150" apart lengthwise at ground level. The legs are 93" wide at ground level. Below ground, the legs are 165" lengthwise and the width below ground is 115". Height is 8'
  • One Bay/Two Swings Commercial and Residential: The legs are 203" apart lengthwise at ground level. The legs are 93" wide at ground level. Below ground, the legs are 220" lengthwise and the width below ground is 115". Height is 8'
  • One Bay/Two Swings Residential Only: The legs are 203" apart lengthwise at ground level. The legs are 93" wide at ground level. Below ground, the legs are 220" lengthwise and the width below ground is 115". Height is 8'
Customize

'

Lead Times
  • Please check the "Ships In" lead time above for this particular product -- many of our commercial play equipment items are made to order
  • Once the item has shipped, you will receive a tracking number and important instructions for unloading
  • Ship dates are a best estimate and not guaranteed
  • Shipments can take up to 10 days in transit
Receiving
  • Every order with complex shipping requirements receives shipping instructions.
  • Unless a loading dock is readily available, this equipment ships via curbside delivery.
  • Commercial play systems generally benefit from having a forklift for unloading, which is typical in the industry.
  • There are many instances where the crates and pallets can be pulled apart by hand and unloaded as well, but a forklift is generally the quickest way to unload the product and is what trucking companies recommend to avoid possible detention charges (unloading that takes more than 3 hours)
  • Please see our FAQ and Shipping Policy for more information.
